Sensor And Automation Control Solder Type Waterproof Connectors IP67

Product Categories

Shenzhen Shinelinkconn Technology Co.,Ltd.

Contact Now

Sensor And Automation Control Solder Type Waterproof Connectors IP67

Certification : ISO9001, ISO14001, IATF16949

Place of Origin : China

MOQ : 500 pcs

Supply Ability : 2k pcs daily capacity

Delivery Time : 2 weeks

Packaging Details : tray

Insulator Material : PA+GF/TPU

Contact Material : Brass/Glod-plated

Waterproof Grade : IP67

Durability : more than 500 Cycles

Applicable Temperature : -25℃~+80℃

Application : Audio & Video, mainly used in power connectors

pins : 3, 4, 5, 6pins

Contact Now

Sensor and Automation Control M Serie 7/8 3 4 5 Pin Connectors Front Rear Mount Socket Female 7/8 Solder Type Connectors

Pins Number: 3-6 pins
Mainly used in power connectors
Plug: assembly, overmolded cable type (length can be customized at will)
Socket: Front Mount Solder Type, Back Mount Solder Type and PCB board type
Products comply with IEC 61076-2-101 Industry 4.0 Agreement NEMA2000 standard
Waterproof grade: Ip65,IP67

Technical parameter

Shell Material	Brass nickel-plated/PA-GF/zinc alloy nickel-plated
Contact Material	Brass/phosphorus copper gold-plated
Sealing Material	Epoxy resin/rubber
Insulator Material	PA+GF/TPU
Applicable Temperature	-25℃ ~ +85℃
Insulation Impedance	≥100MΩ
Contact Impedance	≤5mΩ
Durability	≥500 cycles
Molding Material	TPU/PVC
Waterproof Level	IP65/IP67
Execution Standard	IEC 61076-2-101 Industry 4.0 Agreement NEMA2000 standard

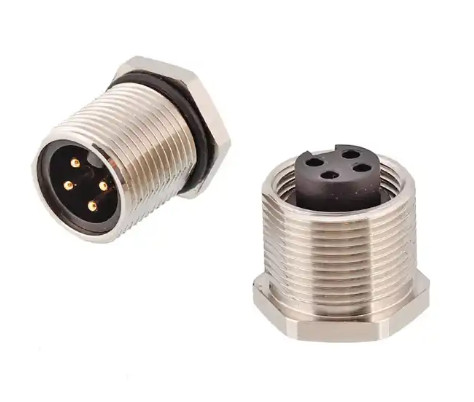

Sensor And Automation Control Solder Type Waterproof Connectors IP67

Details Images

Product Tags:

Sensor and Automation Control Waterproof Connectors

Solder Type Connectors IP67

Sensor and Automation Control Solder Type Connectors

Sensor And Automation Control Solder Type Waterproof Connectors IP67 Images
